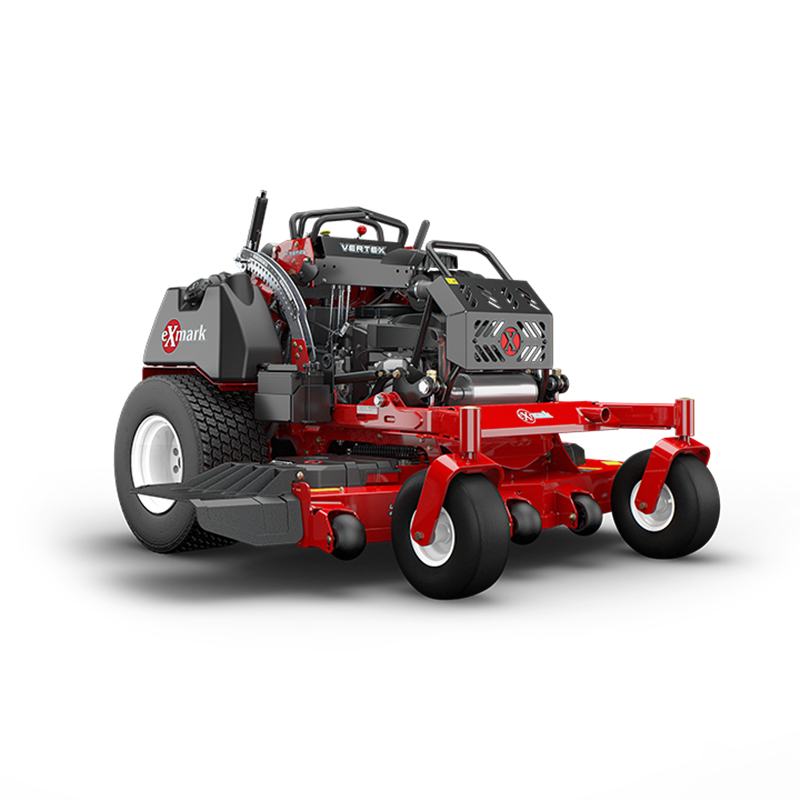

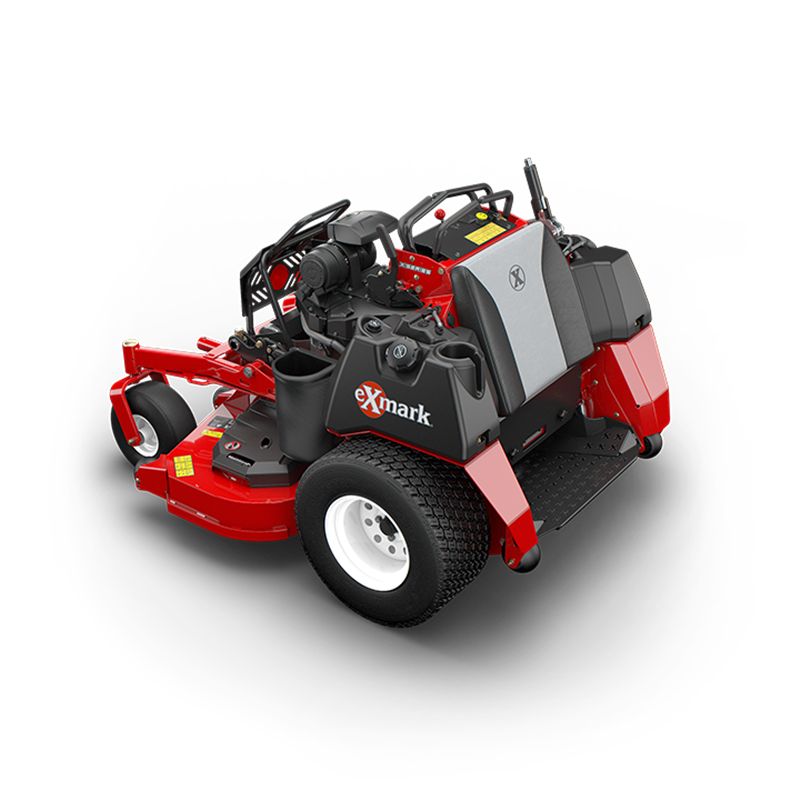

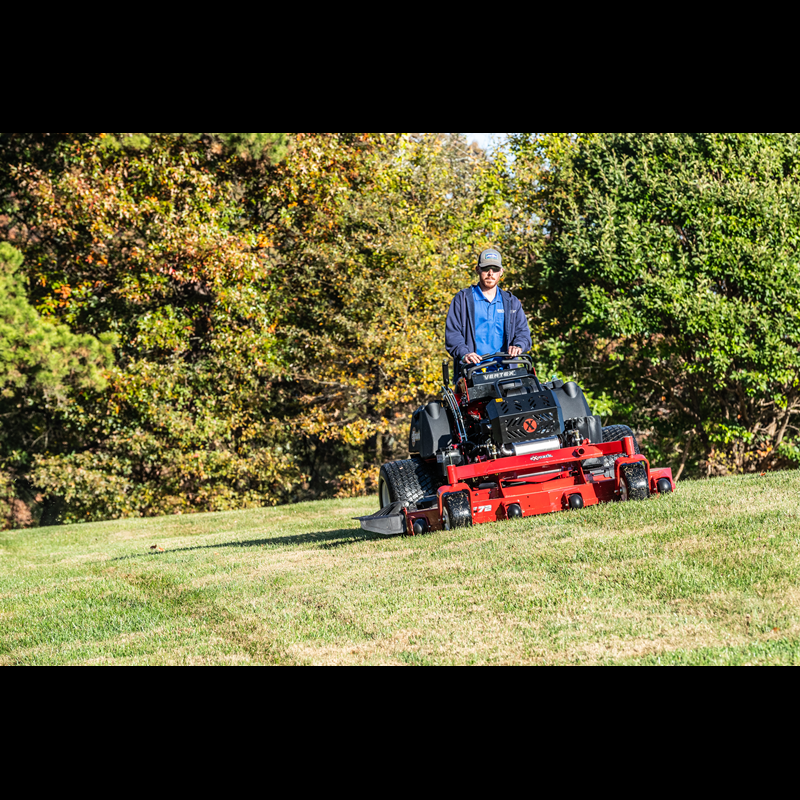

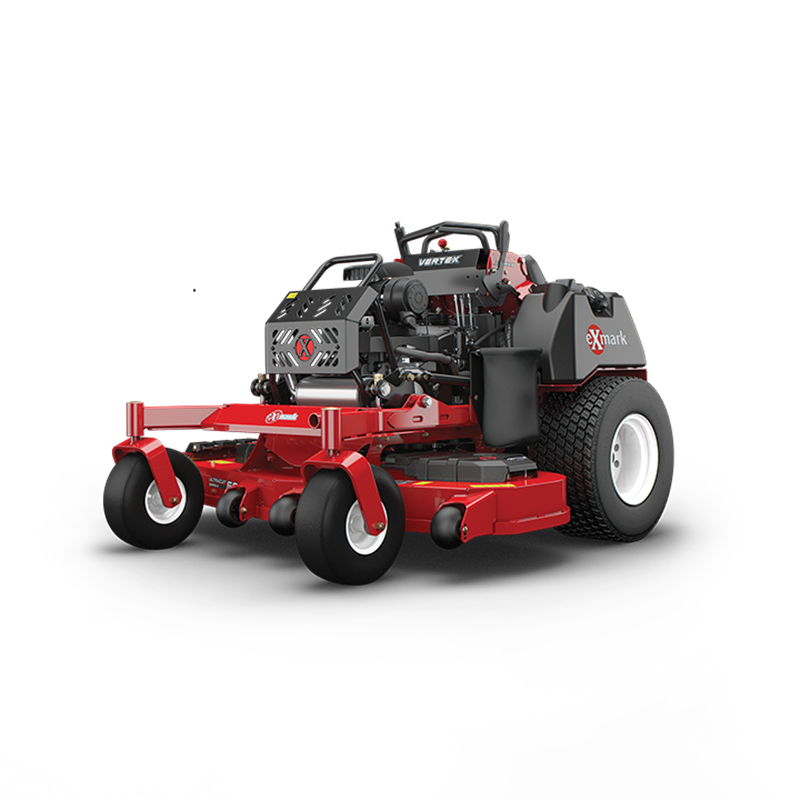

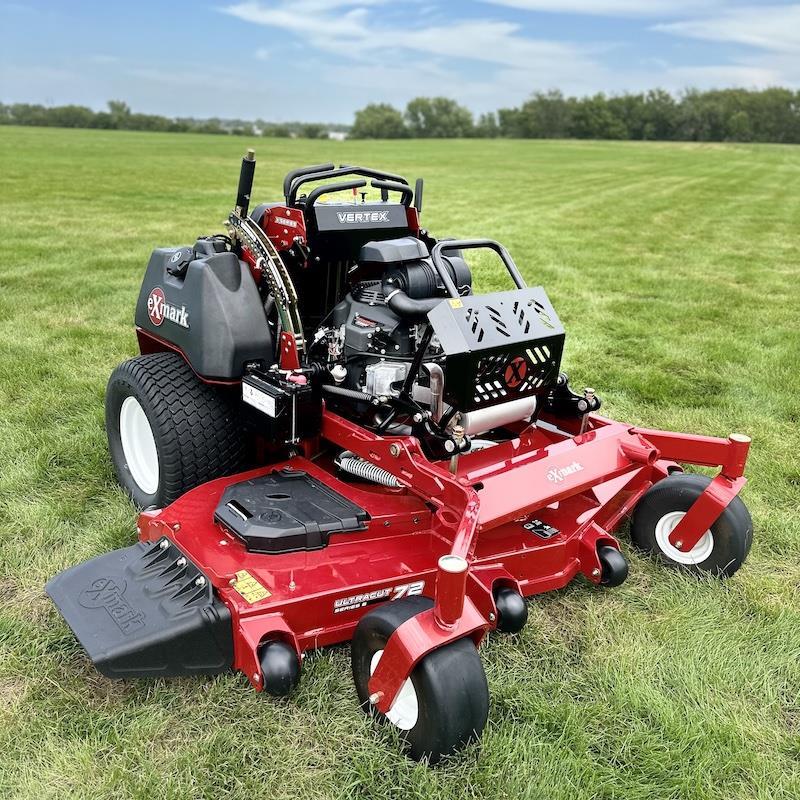

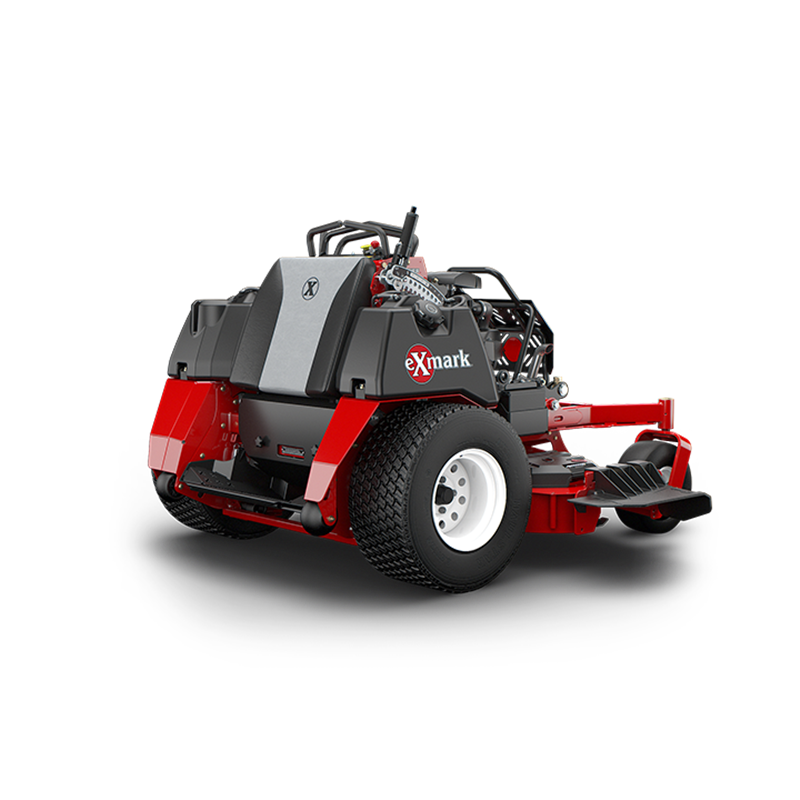

Exmark Vertex X-Series with 38.5 HP* Kawasaki FX1000V Engine and 72″ UltraCut Series 6 Deck

$16,999.00*

*Prices subject to change. Please contact for latest pricing.

Contact us for price

Stock status: Call Store for Availability

Designed to raise the bar for stand-on mower performance and productivity, Vertex X-Series uses the same formed and welded tubular steel frame and heavy-duty 15-inch casters as our premier Lazer Z zero-turn riding mowers. With carbureted Kawasaki FX1000 engines, you’ll have the power to finish jobs faster, with a better quality of cut thanks to our unmatched UltraCut cutting decks. One look and it’s easy to see why the Vertex X-Series is the next generation of stand-on mowers.

Call Us Now

Specs

UPC

193308240695

Starter

Electric

Steering Control

Twin levers with center fixed reference bar for ease of control forward and reverse

Front Caster Tires

15 x 6.0-6, smooth-tread, semipneumatic tires with tapered roller bearings.

Drive Tires

24x12-12 Hoosier Grass Master

Parking Brake

Lever-actuated internal motor brake

Tractor Frame

Welded, heavy-duty 1.5" x 3.0" tubular steel.

Blade Spindles

No maintenance, sealed and nongreasable spindles; 7.75" diameter cutter housing with 1.75" diameter splined blade driver 1.0"-diameter spindle shaft.

Cup Holder

Yes

Electrical

12-volt battery with 30-amp alternator.

Standard Features

Enhanced Engine Hour Meter

Transmission Brand

Hydro-Gear

Transmission Speeds

Infinitely Variable

Engine Brand

Kawasaki

Engine Model

FX1000V

Engine Displacement

999

Transmission

Hydrostatic

Engine Series

V-Twin

Fuel System

Electronic Fuel Injected

Speed

Infinitely variable speed selection 0–12.0 mph (19.3 kmph) forward, 0–5.0 mph (8.0 kmph) reverse

Engine Speed

3,600 rpm

Air Filter

Heavy-duty canister air filtration system

Fuel Capacity

14-gallon (53.0-L), Dual fuel tanks on RH and LH side.

Drive Description

Two Hydro-Gear 16 cc pumps powering two Hydro gear 17.8 cubic inch motors.

Fuel Type

Gas EFI

PTO Engagement

Warner 250 ft-lb clutch

Drive System

HYDRO

Drive Wheel Release

Allows unit movement without engine running.

Fuel Indicator

Yes - Float Gauge

Deck Lift

Single point HOC; with mechanical lift-assist springs.

Carb Compliant

NO

Safety Package

Operator Presence Controls (OPC) with safety interlock system indicators

Deck Style

Floating Deck

Deck Style Description

Full-floating UltraCut Series 6. Side discharge standard, with molded discharge chute and option to mulch.

Width / Cutting Deck

72"

Deck Construction

10-gauge top that is formed and continuously seam welded, 7-gauge side skirt

Cutting Heights

1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (0.64 cm) increments adjustable from operator’s platform.

Blade Tip Speed

Approximately 18,500 fpm.

Blades

3 Blades at 24.50" Length

Width

84.83

Height

48.75

Length

77.11

Curb Weight

1400
