Exmark Vertex V-Series with Hypercell and 52″ Electric Series 4 Deck

Contact us for price

Stock status: Call Store for Availability

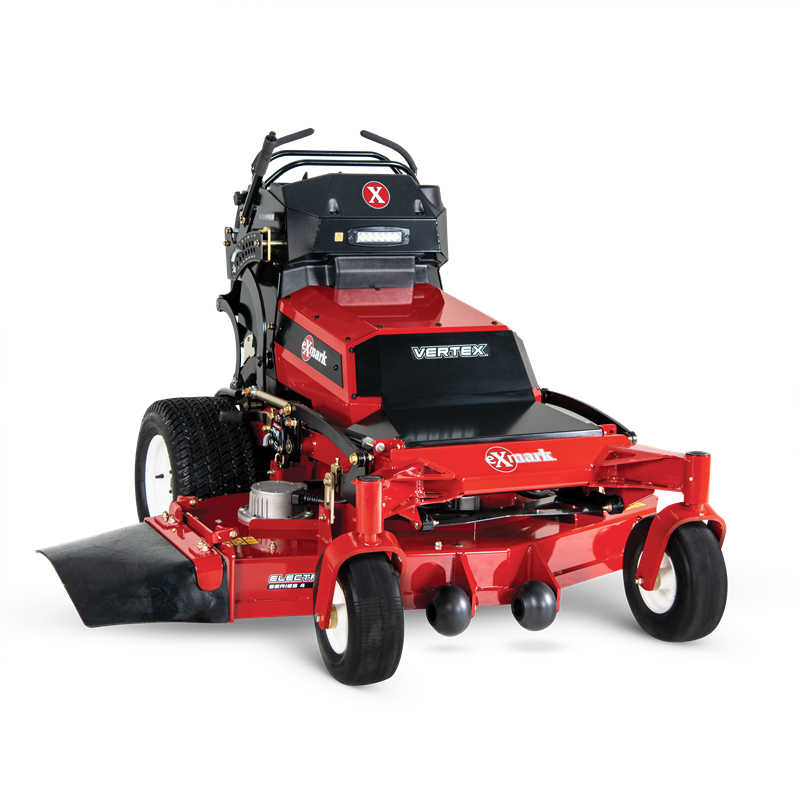

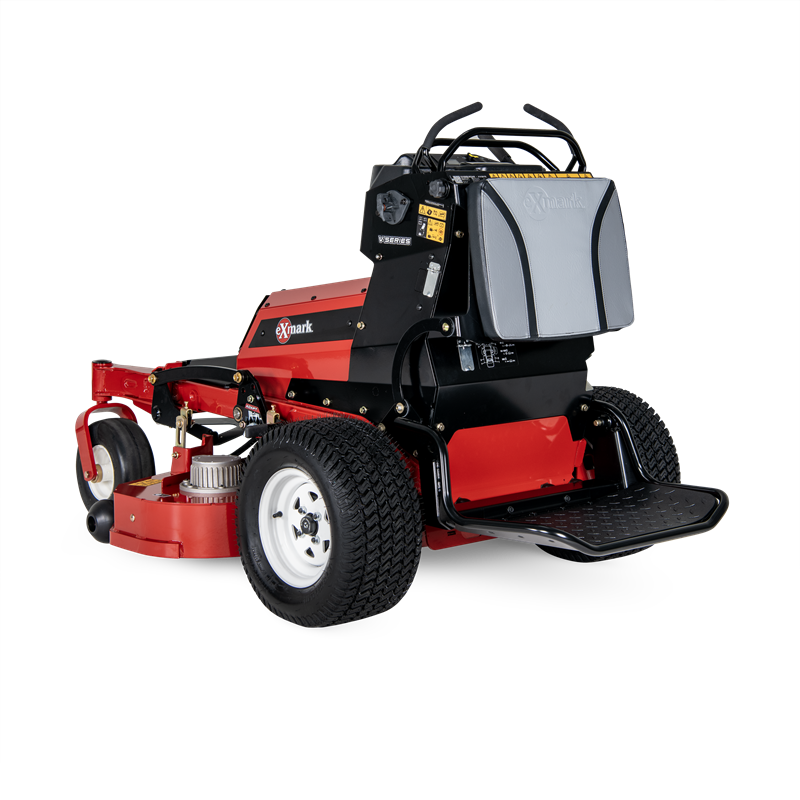

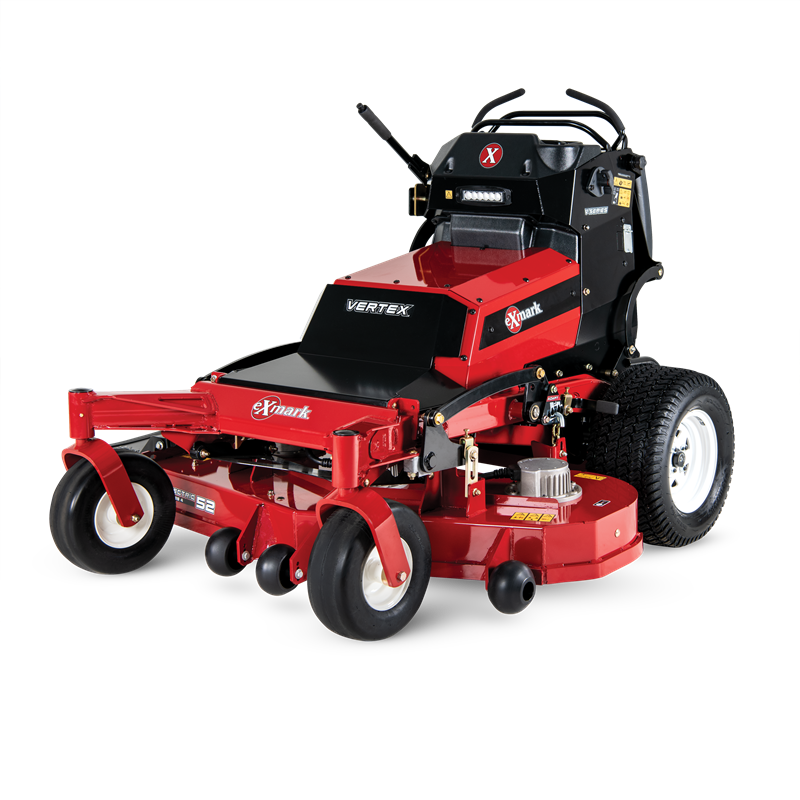

The Vertex V-Series electric stand-on mower gives landscape maintenance professionals a clear edge when competing for contracts with sound ordinances or zero engine exhaust emission mandates. The electric mower delivers all the commercial durability, productivity, and cut quality you expect from an Exmark, in an amazingly fast, quiet, and easy-to-use electric stand-on mower. The HyperCell power system provides up to seven hours of run time with each charge allowing you a full day’s worth of mowing without a single recharge. Plus, our patent-pending software package delivers precise maneuverability with intuitive controls. And, Horizon360 Connect remote software is included, giving you full app-based connectivity to settings, location, and data from your Vertex V-Series machines.Looking for the state of the art in electric commercial stand-on mowers? You’ve found it in the Vertex V-Series. The battery powered Vertex is available with a 52-inch deck width. Take advantage of the zero engine exhaust emission, low maintenance electric mower today.


Specs

UPC

193308225425

Steering Control

Twin levers with front and rear reference bar. Max speed ajustable via control panel.

Front Caster Tires

13 x 5.0-6, smooth-tread, semipneumatic tires with tapered roller bearings.

Drive Tires

20x10.0-10 Hoosier Turf Tech TL

Parking Brake

Automatic Electric brake.

Tractor Frame

Welded, heavy-duty 1.5" x 3.0" tubular steel.

Blade Spindles

No maintenance, sealed and nongreasable powered spindles; 9 in / 22.9 cm Diameter Die-Cast Aluminum w/ Blade Retainer

Cup Holder

Yes

Electrical

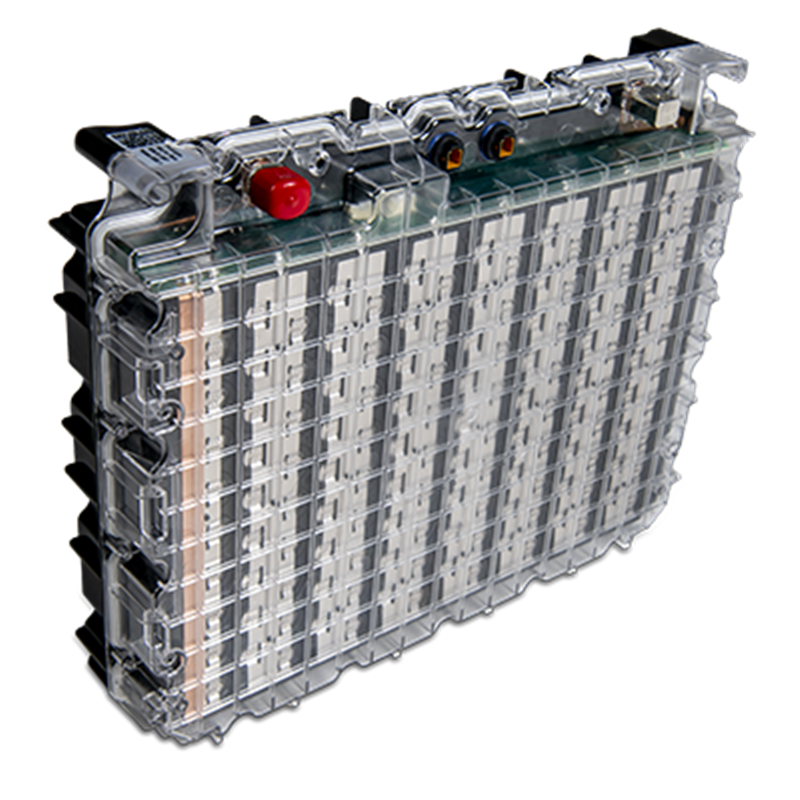

60-volt max 18.4kWh lithium-ion Hypercell battery pack

Engine Displacement

N/A

Engine Series

N/A

Fuel System

Electric

Speed

Infinitely variable speed selection 0–10.0 mph (16.1 kmph) forward, 0–4.0 mph (6.4 kmph) reverse

Engine Spec

N/A

Engine Speed

N/A

Air Filter

N/A

Fuel Capacity

N/A

Drive Description

Two Dana 3kW drive motors with Spicer torque hubs

Fuel Type

Battery

PTO Engagement

N/A

Drive System

ELECTRIC

Drive Wheel Release

Allows unit movement without machine powered on.

Fuel Indicator

Digital Battery SoC (State of Charge) Display

Deck Lift

Single point HOC; with mechanical lift-assist springs.

Safety Package

Operator Presence Controls (OPC) with safety interlock system indicators

Deck Style

Floating Deck

Deck Style Description

Full-floating Electric Series 4. Side discharge standard, with flexible discharge chute and option to mulch.

Width / Cutting Deck

52"

Deck Construction

7-gauge top that is formed and continuously seam welded, 7-gauge side skirt

Cutting Heights

1.5" (3.8 cm) to 5.5" (13.9 cm) in 0.25" (0.64 cm) increments adjustable from operator’s platform.

Blade Tip Speed

Adjustable, Max 17,500 fpm

Blades

3 Blades at 18.00" Length

Width

65

Height

49.75

Length

77.25

Curb Weight

1158
