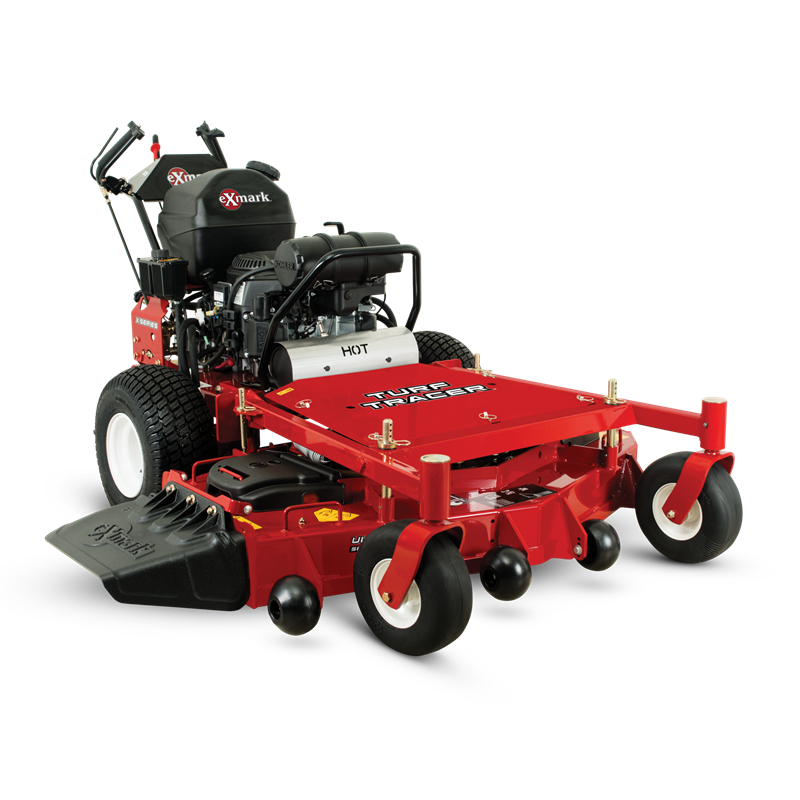

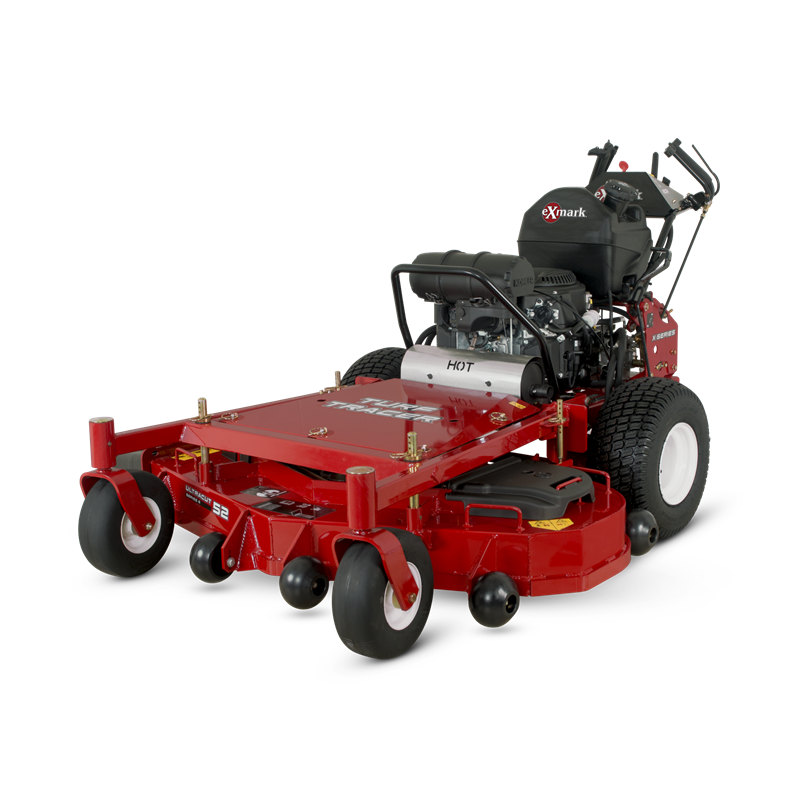

Exmark Turf Tracer X-Series with 23.5 HP* Kohler EFI ECV730 Engine and 52″ UltraCut Series 4 Deck

Contact us for price

Stock status: Call Store for Availability

By virtually any measure, the Turf Tracer X-Series represents the definitive, full-featured hydro mower. Whether you choose the 52- or 60-inch cutting deck, the UltraCut™ Series 4 with splined spindle blade driver is up to the toughest jobs. As are the X-Series engines—Kohler® EFI. Ground speeds up to 6.75 mph, and up to 2.25 in reverse, also rank the Turf Tracer X-Series among the most productive mowers in its class. Want to view the rest of our lineup of self-propelled mowers? Check out our full lineup of commercial walk-behind mowers.


Specs

UPC

193308240985

Starter

Electric

Steering Control

Hydro drive with Enhanced Control System (ECS), forward/reverse, left/right or zero-turn.

Front Caster Tires

11 x 4.0-5, smooth tread, semi-pneumatic.

Drive Tires

18 x 8.5-8, 4-ply Turf Master®

Safety Package

Operator Presence Controls (OPC). Operator must have speed control lever in neutral and blades disengaged to leave operator’s position without stopping engine

Parking Brake

Lever-actuated mechanical compression.

Electrical

12-volt battery with 20-amp alternator.

Standard Features

Enhanced engine hour meter

Engine Brand

Kohler

Transmission Speeds

Infinitely Variable

Transmission Brand

Hydro-Gear

Engine Model

ECV730

Engine Displacement

747

Engine Series

Command™ EFI

Fuel System

Electronic Fuel Injected

Speed

Infinitely variable speed selection from 0– 6.75 mph (10.9 kmph) forward, 0–2.25 mph (3.6 kmph) reverse.

Transmission

Hydrostatic

Drive

Hydro-Drive

Engine Spec

3051

Engine Speed

3,600 rpm

Air Filter

Heavy-duty canister air filtration system

Fuel Capacity

5-gallon (18.9-L) fuel tank.

Drive Description

Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1" (2.54cm) tapered shafts.

Fuel Type

Gas EFI

PTO Engagement

Electromagnetic 200 ft-lbs clutch.

Drive Wheel Release

Allows unit movement without engine running.

Fuel Indicator

None

Deck Lift

Manual lift with hairpin from hole to hole for position adjustment.

Carb Compliant

No

Deck Style

Floating Deck

Deck Style Description

Full-floating UltraCut Series 3, side discharge standard, with molded discharge chute and option to bag or mulch.

Width / Cutting Deck

52"

Deck Construction

10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge welded spindle mounting locations for improved strength.

Cutting Heights

1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments.

Blade Spindles

No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.

Blade Tip Speed

Approximately 18,500 fpm.

Blades

3 Blades at 18.00" Length

Width

64.3 in. (163.3 cm)

Height

42.0 in. (106.7 cm)

Length

75.9 in. (192.8 cm)

Curb Weight

690
