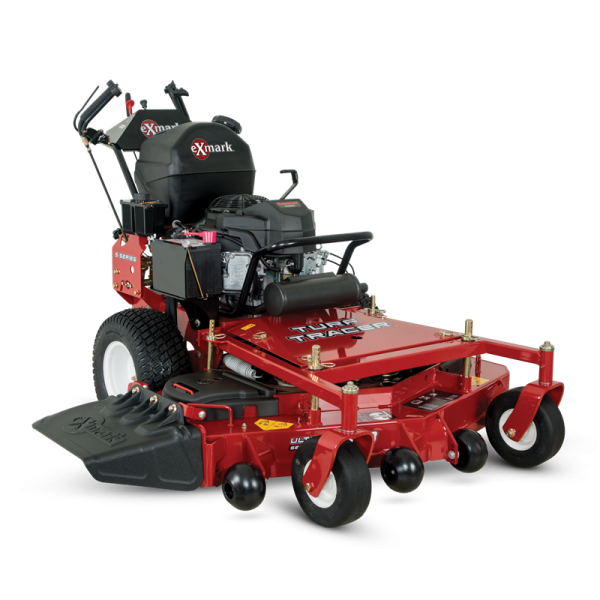

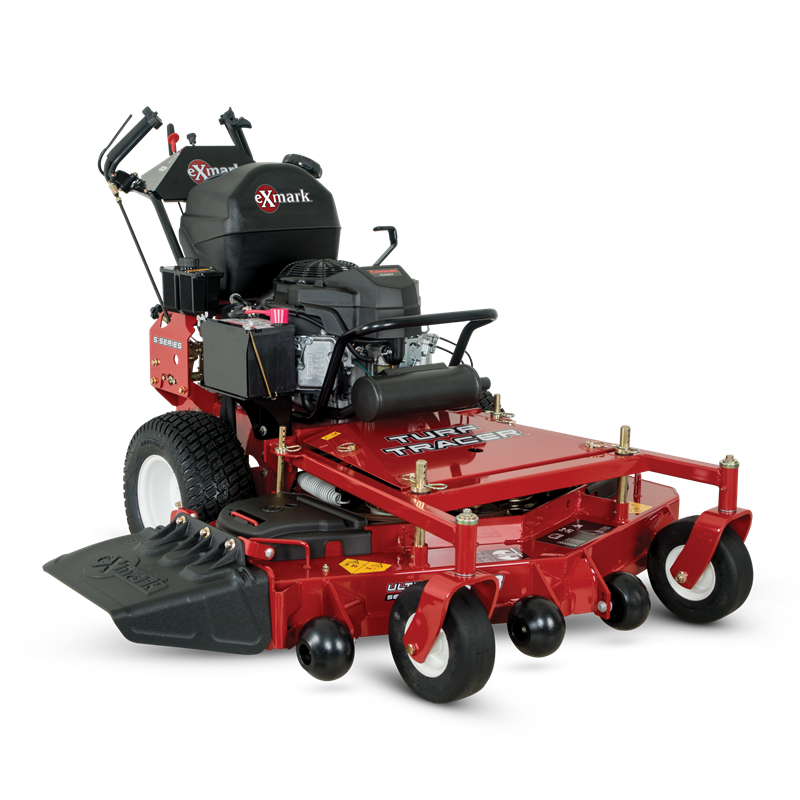

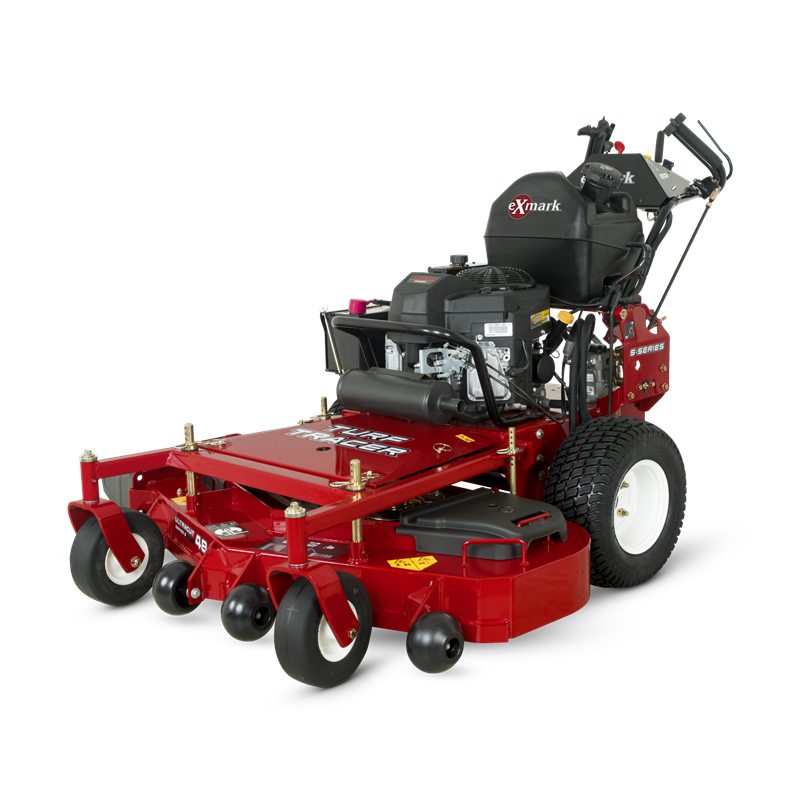

Exmark Turf Tracer S-Series with 18.5 HP* Kawasaki FS600V Engine and 36″ UltraCut Series 3 Deck

Contact us for price

Stock status: Call Store for Availability

With the Exmark Turf Tracer S-Series commercial walk-behind mower, you can choose from a variety of rugged engines. Then, match that power to cutting decks in 36-, 48-, and 52-inch widths. In whatever configuration you choose, you’ll get our patented Enhanced Control System (ECS) for ultimate operator comfort. Which translates to day-long operator productivity. Looking for even larger, more powerful walk-behind mowers? Check out our Turf Tracer X-Series.


Specs

UPC

193308240961

Starter

Electric

Steering Control

Hydro drive with Enhanced Control System (ECS), forward/reverse, left/right or zero-turn.

Front Caster Tires

9 x 3.5-4, smooth-tread, semi-pneumatic.

Drive Tires

16 x 7.5-8, 4-ply Turf Master®

Safety Package

Operator Presence Controls (OPC). Operator must have speed control lever in neutral and blades disengaged to leave operator’s position without stopping engine

Parking Brake

Lever-actuated mechanical compression.

Electrical

12-volt battery with 15-amp alternator.

Standard Features

Engine hour meter

Transmission Brand

Hydro-Gear

Transmission Speeds

Infinitely Variable

Engine Brand

Kawasaki

Engine Model

FS600V

Engine Displacement

603

Transmission

Hydrostatic

Engine Series

V-Twin

Fuel System

Carbureted

Speed

Infinitely variable speed selection from 0– 6.2 mph (10 kmph) forward, 0–2.2 mph (3.5 kmph) reverse.

Drive

Hydro-Drive

Engine Spec

AS26-R

Engine Speed

3,600 rpm

Air Filter

Standard Engine Manufacturer's air filter

Fuel Capacity

5-gallon (18.9-L) fuel tank.

Drive Description

Twin Hydro-Gear variable-displacement pumps and twin high-efficiency Parker/Ross wheel-drive motors with 1" (2.54 cm) tapered shafts.

Fuel Type

Gas Carbureted

PTO Engagement

Electromagnetic 105 ft-lbs clutch.

Drive Wheel Release

Allows unit movement without engine running.

Fuel Indicator

None

Deck Lift

Manual lift with hairpin from hole to hole for position adjustment.

Carb Compliant

No

Deck Style

Floating Deck

Deck Style Description

Full-floating UltraCut Series 3, side discharge standard, with molded discharge chute and option to bag or mulch.

Width / Cutting Deck

36"

Deck Construction

10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge welded spindle mounting locations for improved strength.

Cutting Heights

1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments.

Blade Spindles

No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.

Blade Tip Speed

Approximately 18,500 fpm.

Blades

2 Blades at 18.00" Length
