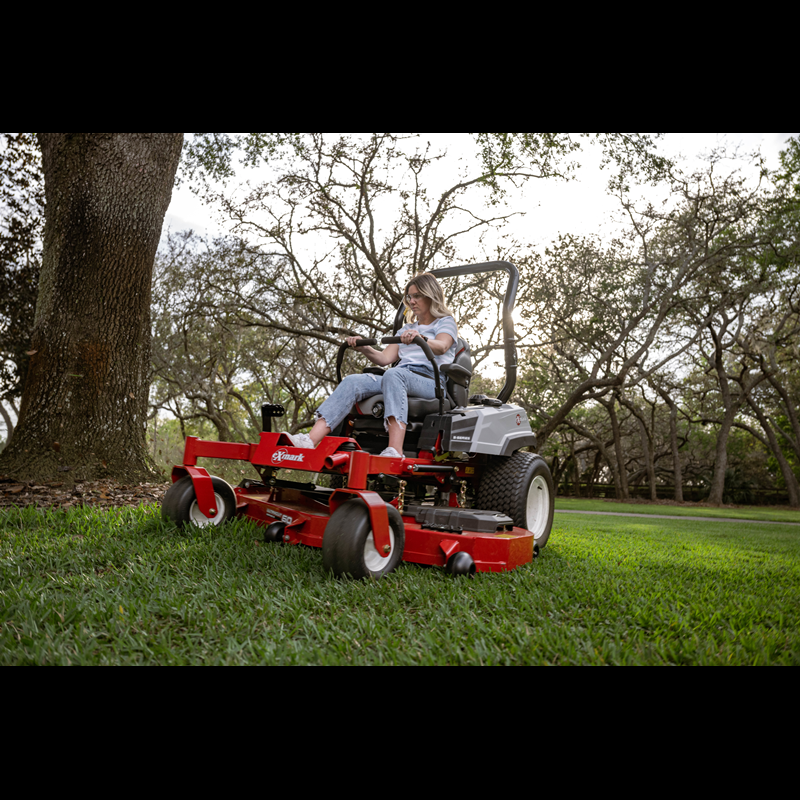

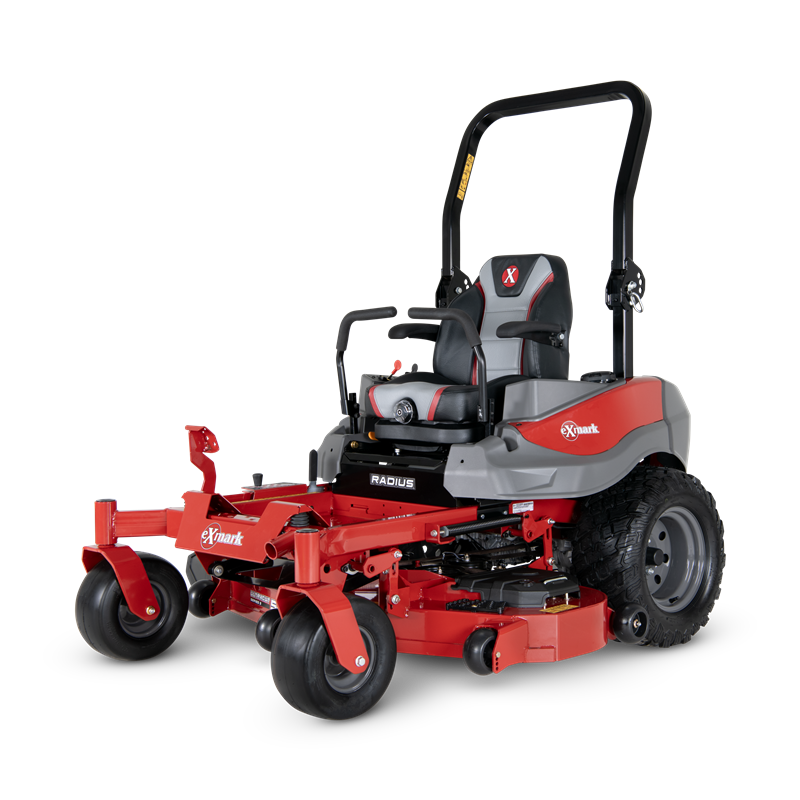

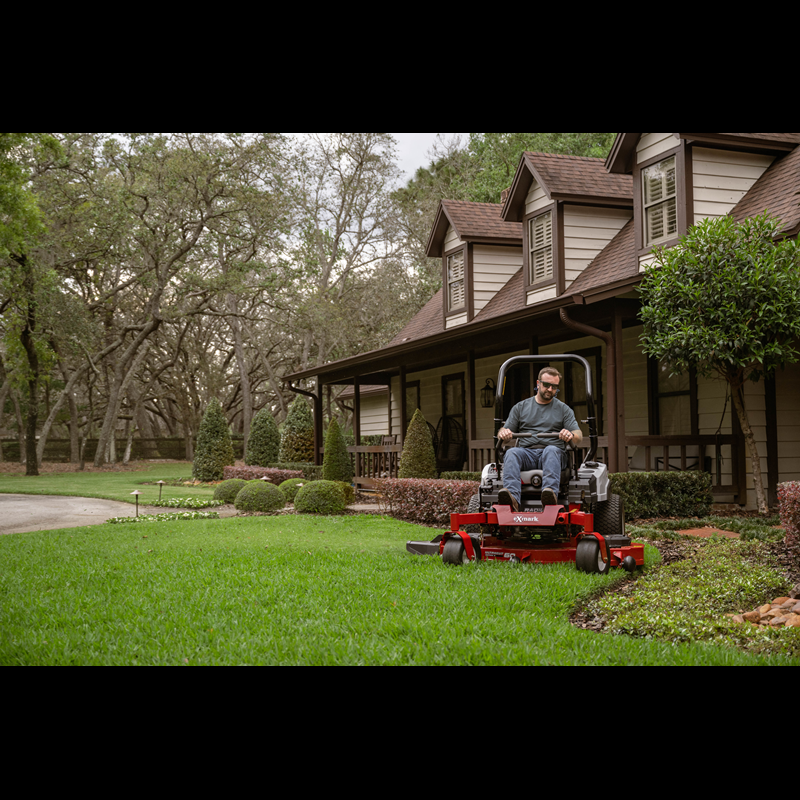

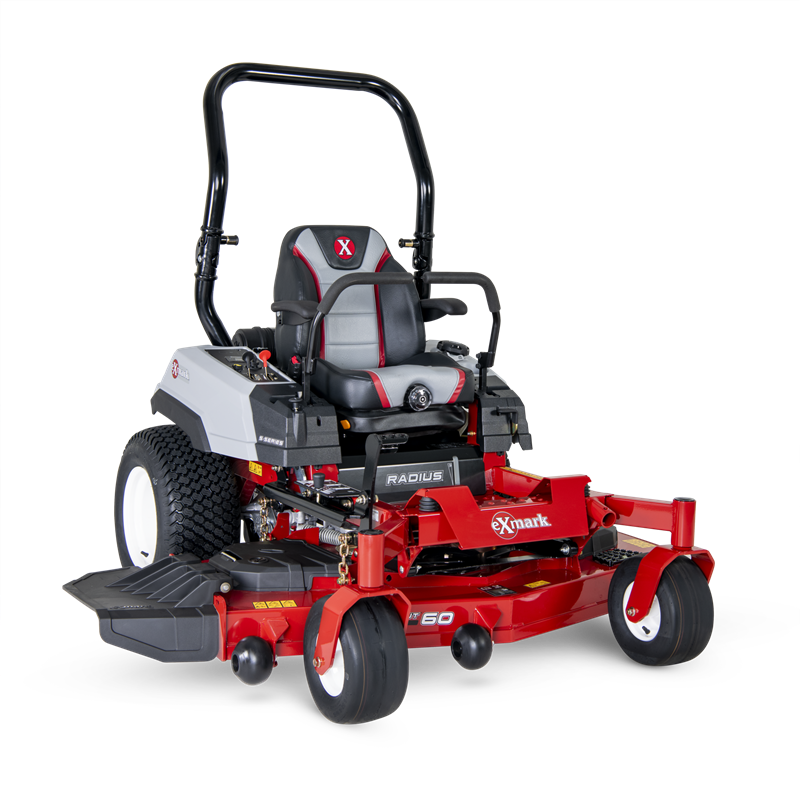

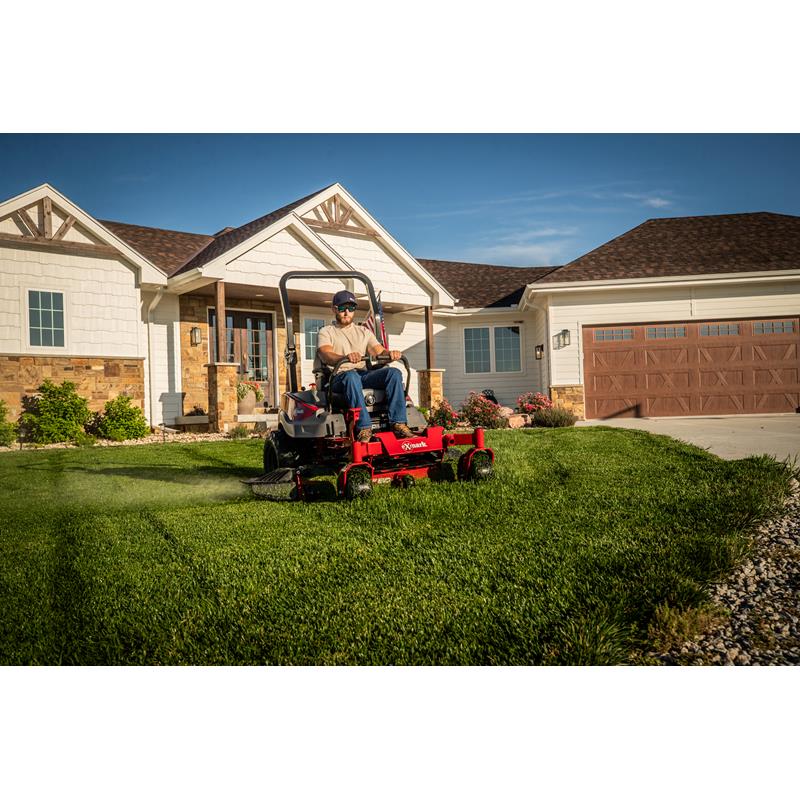

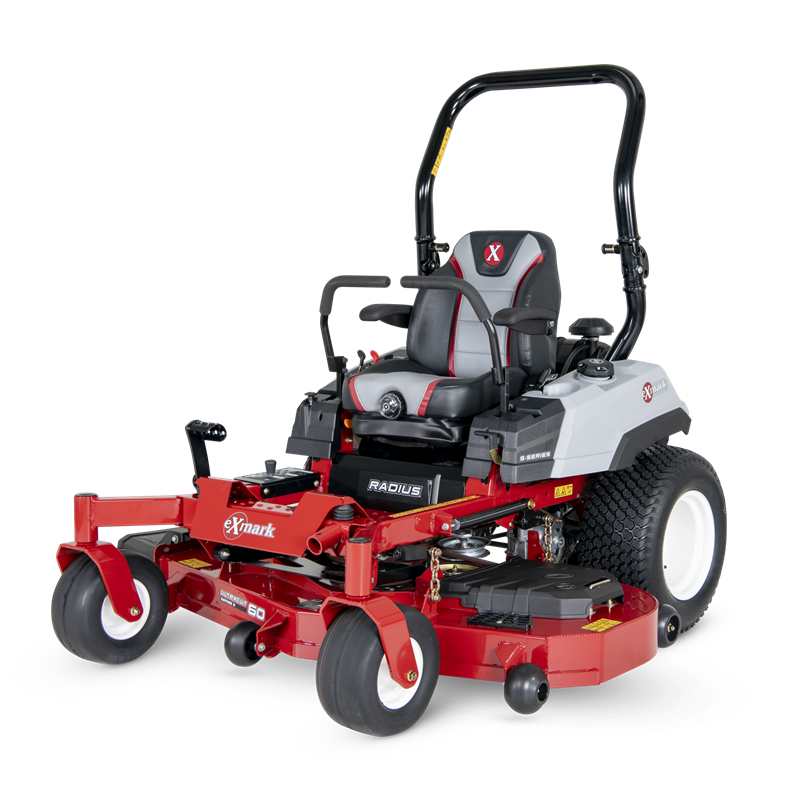

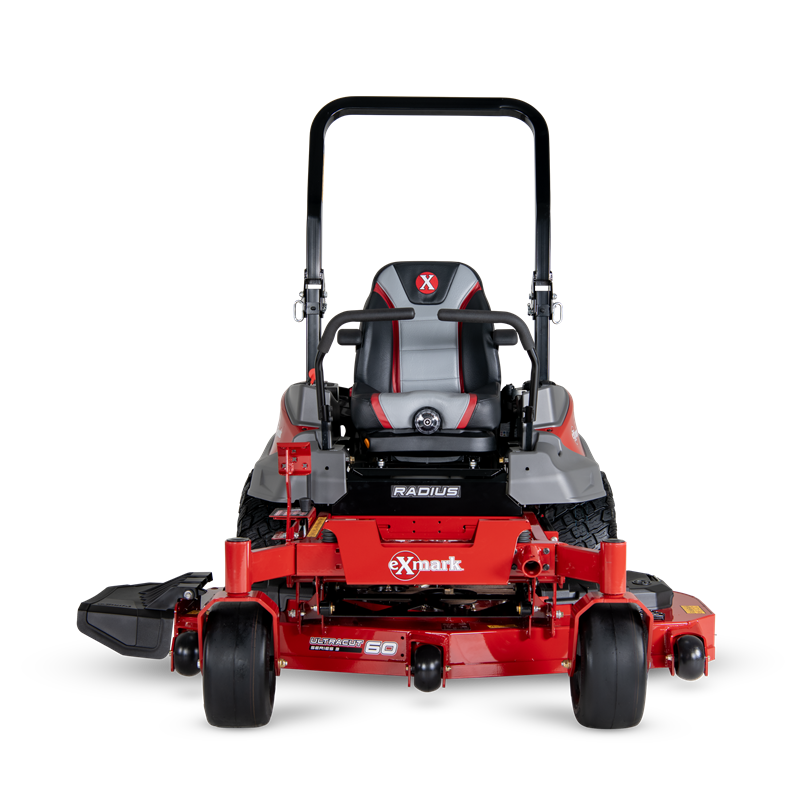

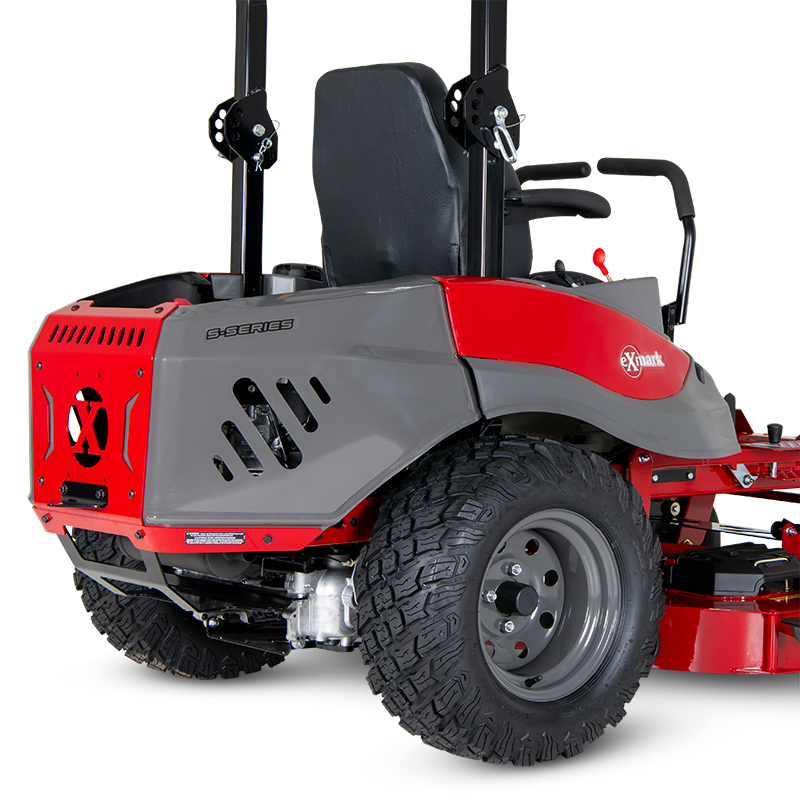

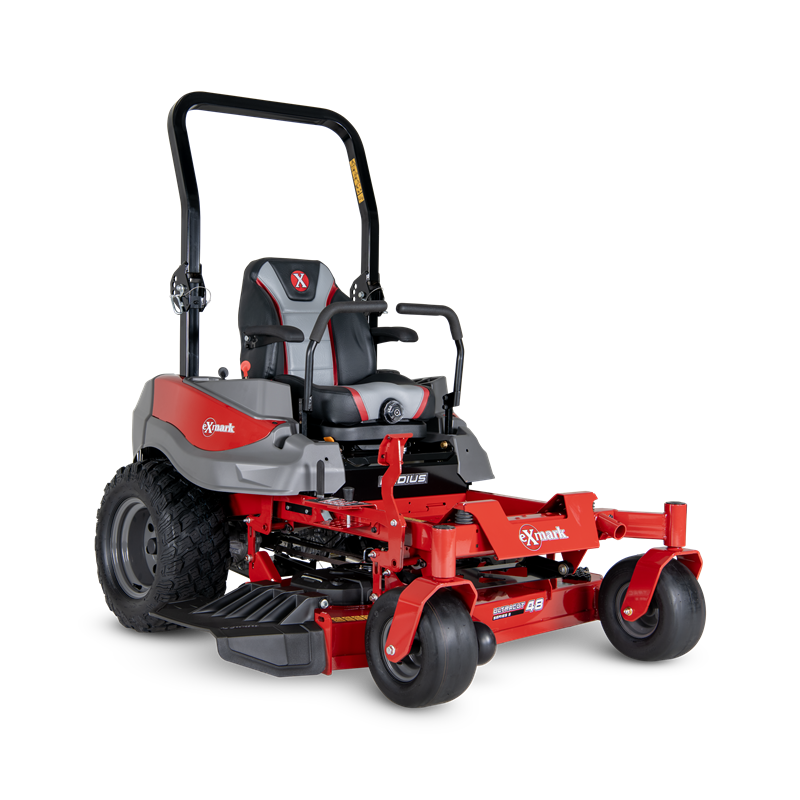

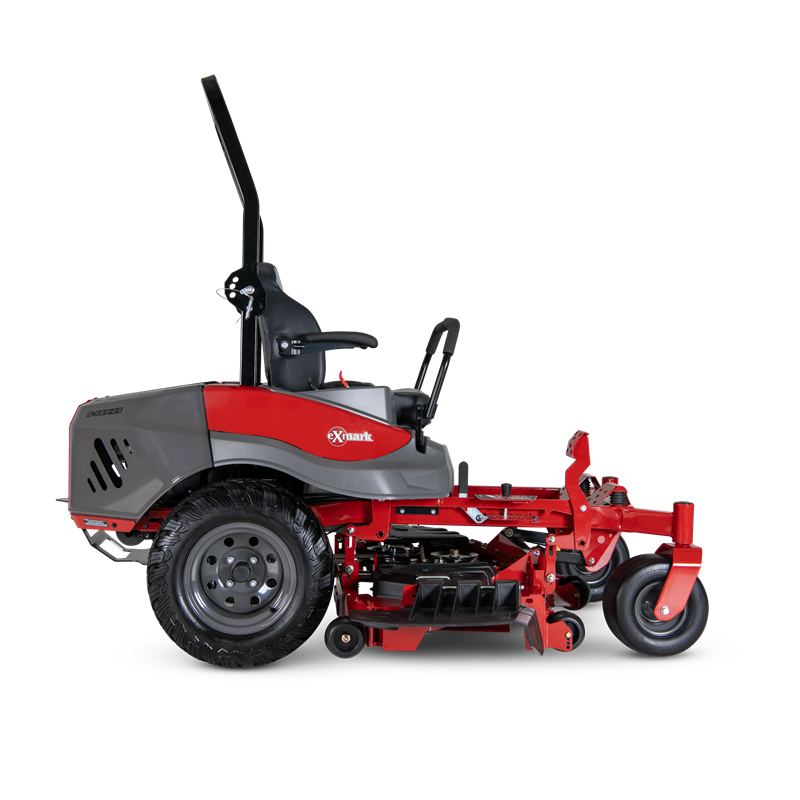

Exmark Radius S-Series with 20.5 HP* Kawasaki FX651V Engine and 48” Ultracut Series 3 Deck

$9,299.00*

*Prices subject to change. Please contact for latest pricing.

Contact us for price

Stock status: Call Store for Availability

Whether you’re upgrading from an older machine or are looking to add another zero-turn to your trailer, the new Radius S-Series delivers an unbeatable combination of durability, operator comfort, performance, and value. Choose from 48-, 52-, or 60-inch UltraCut Series 3 side-discharge cutting decks, each equipped with our exclusive flow-control baffles for a superior cut quality. An adjustable full-suspension operator seat and isolated footrest provide superior all-day mowing comfort.Radius S-Series models are also designed for maximum durability with reduced maintenance. With just two grease points to lubricate annually, low-maintenance Hydro-Gear integrated transmissions, and reliable Kawasaki commercial engines, Radius S-Series models are built for the long haul.Looking for even more performance, power, and durability? Check out the new Radius X-Series zero-turn mower.

Call Us Now

Specs

UPC

193308225166

Onboard Intelligence

none

Starter

Electric

Steering Control

Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.

Front Caster Tires

13 x 6.5-6, smooth tread, pneumatic. Caged Roller Bearings (126-3289)

Drive Tires

23 x 9.5-12 Super Turf TL

Parking Brake

Lever-actuated pawl brake.

Tractor Frame

Unibody, welded, heavy-duty 2" X 3" rectangular tubular steel.

Blade Spindles

No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.

Cup Holder

Yes

Electrical

12-volt battery with 15-amp alternator.

Standard Features

Engine hour meter, cup holder, tow hitch and jack receiver

Seat

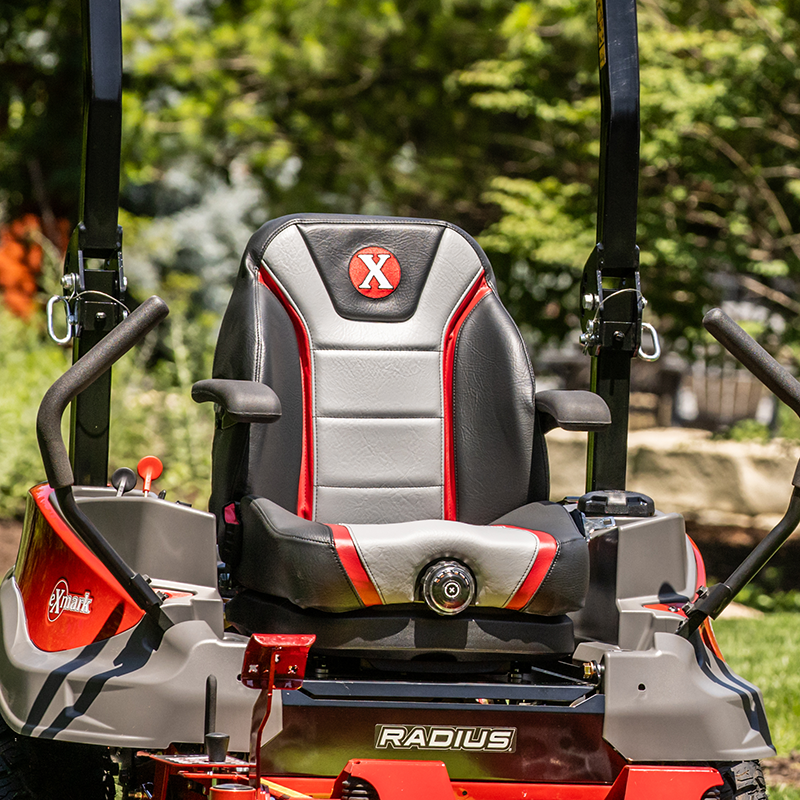

Deluxe suspension (adjustable spring suspension) seat with high back, molded foam flip-up armrests, and integral safety switch

Transmission Brand

Hydro-Gear

Engine Brand

Kawasaki

Transmission Speeds

Infinitely Variable

Engine Model

FX651V

Engine Displacement

726

Engine Series

V-Twin

Fuel System

Carbureted

Speed

Infinitely variable speed selection from 0–9.0 mph forward, 0–5.0 mph reverse

Transmission

Hydrostatic

Drive

Hydro-Drive

Engine Spec

FX651V_S13

Engine Speed

3,800 rpm

Air Filter

Cyclonic Air Cleaner

Fuel Capacity

7-gallon single fuel tank with single fill location

Drive Description

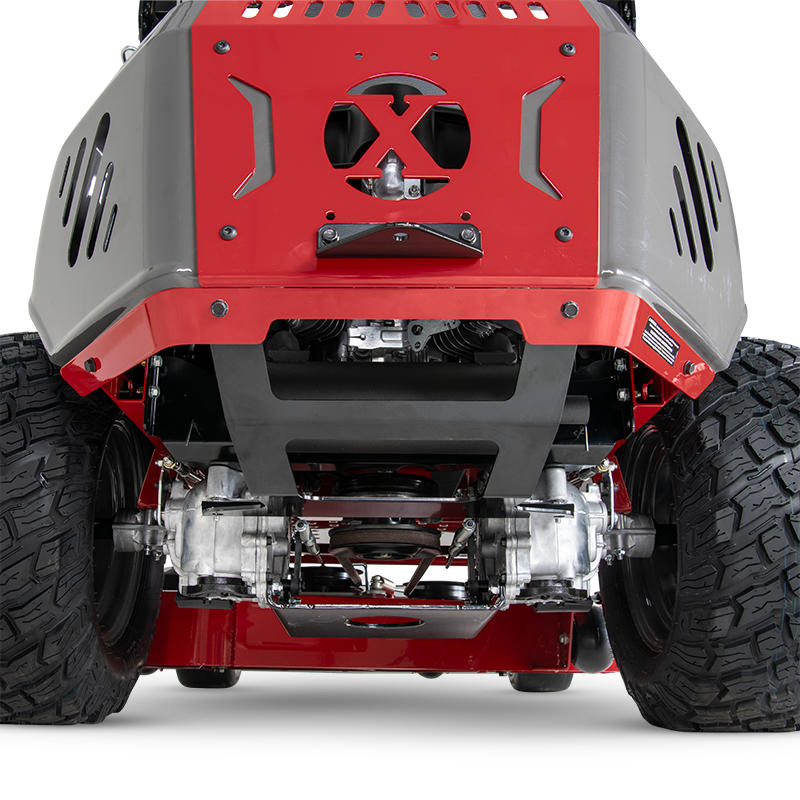

Dual Hydro Gear ZT3100, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.

Fuel Type

Gas Carbureted

PTO Engagement

MagStop electromagnetic 125-ft-lb clutch

Drive System

Hydro-Drive

Drive Wheel Release

Allows unit movement without engine running.

Fuel Indicator

Translucent Visual

Deck Lift

Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.

Carb Compliant

No

Safety Package

Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators

ROPS

2-post foldable ROPS standard with seat belt and latch.

Deck Style

Floating Deck

Deck Style Description

Full-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to

Width / Cutting Deck

48"

Deck Construction

10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt.

Cutting Heights

1.5" to 5.0" in 0.25" increments

Blade Tip Speed

Approximately 18,500 fpm

Bag Capacity

N/A

Blades

2 Blades at 24.5" Length

Width

61"

Height

69.7"

Length

82.9"

Curb Weight

900
