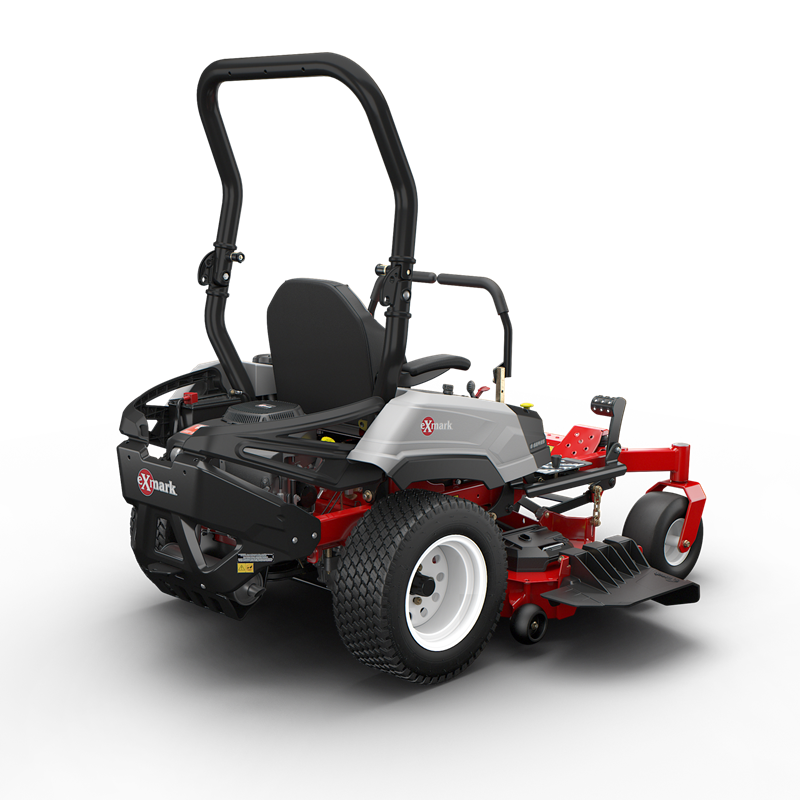

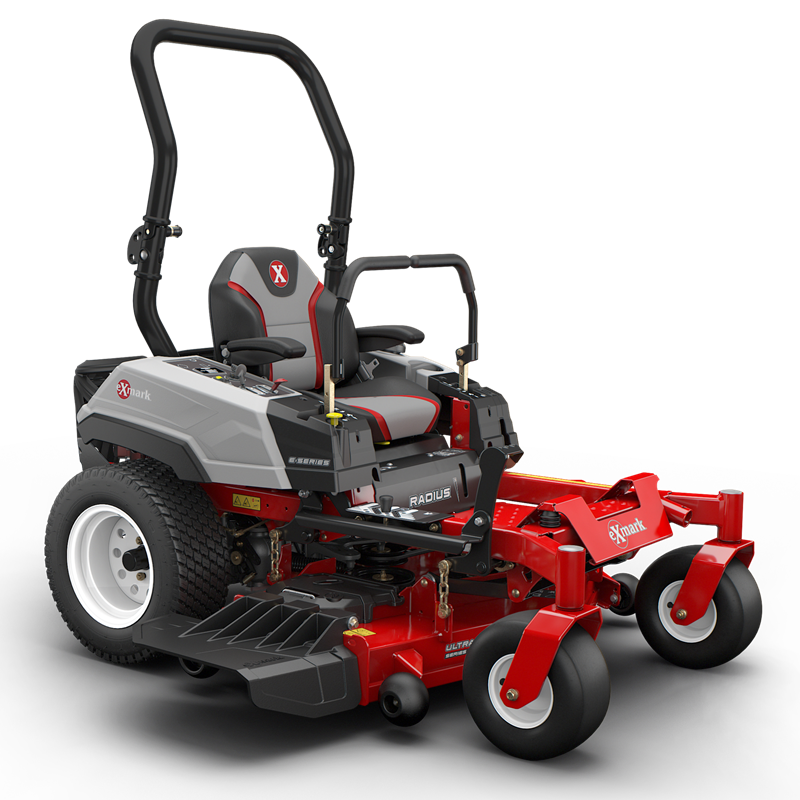

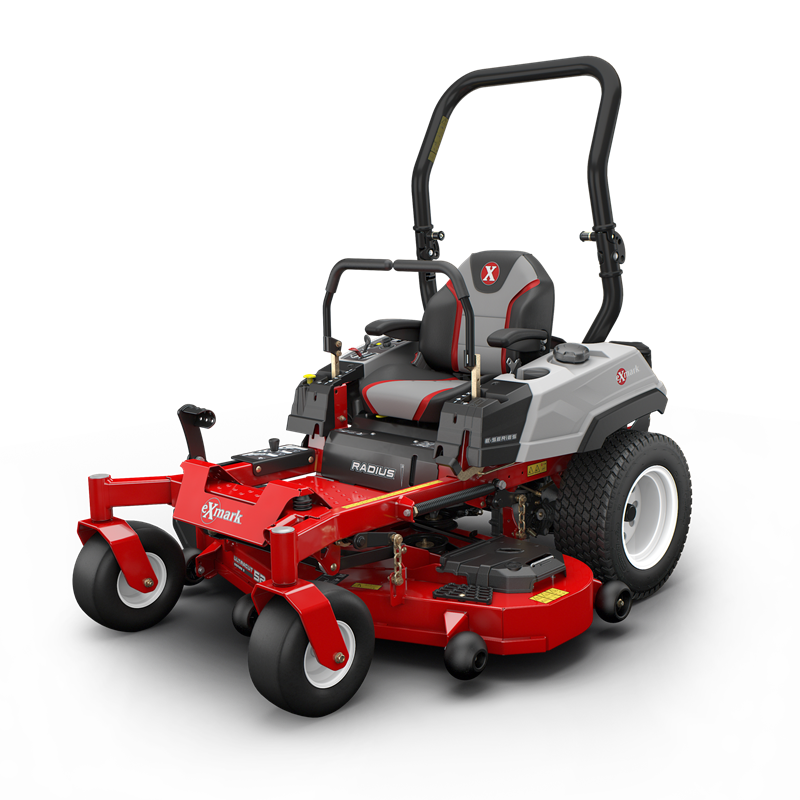

Exmark Radius E-Series with 24.5 HP* Exmark 708CC Engine and 52” UltraCut Series 3 Deck

Contact us for price

Stock status: Call Store for Availability

Designed to deliver professional-grade features at an affordable price, the new Exmark Radius E-Series zero-turn mower is a great option for landscape maintenance pros and users seeking professional performance. Available with a choice of 48-, 52- or 60-inch UltraCut Series 3 cutting decks, the Radius E-Series delivers the cut quality you expect, with reduced maintenance and durability you can count on.Powered by the Exmark twin-cylinder commercial engine, Radius E-Series models deliver superior operator comfort with an isolated footrest, seat suspension options and a new side pod design (2023 models) that places vital controls right at the operator’s fingertips.If you’re looking for a larger, more powerful commercial zero-turn mower, check out the Radius S-Series and Radius X-Series.


Specs

UPC

193308225333

Onboard Intelligence

none

Starter

Electric

Steering Control

Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.

Caster Forks

.375" thick caster yoke arms

Front Caster Tires

13 x 6.5-6, smooth tread, pneumatic. Bushings

Drive Tires

22 x 9.5-12 Super Turf TL

Parking Brake

Lever-actuated pawl brake.

Tractor Frame

Unibody, welded, heavy-duty 2" X 3" rectangular tubular steel.

Blade Spindles

No maintenance, sealed and non-greasable spindles; 7.30"-diameter cutter housing contains 17mm (.67")diameter spindle shaft and hex blade drive.

Cup Holder

Yes

Electrical

12-volt battery with 15-amp alternator.

Standard Features

Engine hour meter, cup holder, tow hitch and jack receiver

Seat

High back seat with foam padded seat cushion, armrests and integral safety switch

Transmission Brand

Hydro-Gear

Engine Brand

Exmark

Transmission Speeds

Infinitely Variable

Engine Model

LC2P77F

Engine Displacement

708

Engine Series

V-Twin

Fuel System

Carbureted

Speed

Infinitely variable speed selection from 0–8.0 mph (12.9 kmph) forward, 0–5.0 mph (8.0 kmph) reverse.

Transmission

Hydrostatic

Drive

Hydro-Drive

Engine Spec

K5045

Engine Speed

3,600 rpm

Air Filter

Standard Engine Manufacturer's air filter

Fuel Capacity

7-gallon (26.5-L) single fuel tank with single fill location.

Drive Description

Dual Hydro Gear ZT2800, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.

Fuel Type

Gas Carbureted

PTO Engagement

MagStop electromagnetic 125-ft-lb clutch

Drive System

Hydro-Drive

Drive Wheel Release

Allows unit movement without engine running.

Fuel Indicator

Translucent Visual

Deck Lift

Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.

Carb Compliant

No

Safety Package

Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.

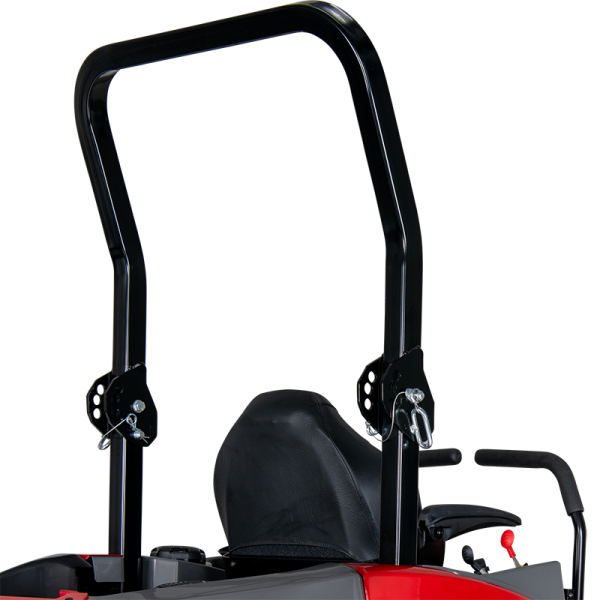

ROPS

2-post foldable ROPS standard with seat belt and latch.

Deck Style

Floating Deck

Deck Style Description

Full-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulch.

Width / Cutting Deck

52"

Deck Construction

10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt.

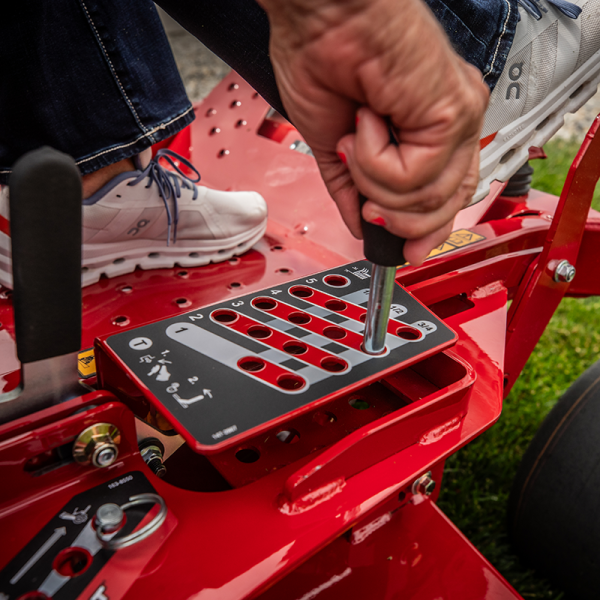

Cutting Heights

1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (.6 cm) increments, adjustable from operator's seat.

Blade Tip Speed

Approximately 18,500 fpm.

Bag Capacity

N/A

Blades

3 Blades at 18.00" Length

Width

64.3 in (163.3 cm)

Height

69.7 in (177.0 cm)

Length

80.3in (204.0 cm)

Curb Weight

861
