Specs
- Width 65.2 in. (166.0 cm)
- Height 46.6 in. (119.0 cm)
- Length 76.0 in. (193.0 cm)
- Curb Weight 616
- Deck Style Floating Deck
- Deck Style Description Series 2 fabricated and welded steel deck. Decks have side discharge standard with the option ot bag or mulch.
- Width / Cutting Deck 54"
- Deck Construction 10-gauge top that is formed and welded, 12-gauge side skirt and 7-gauge welded bumper. 4 point suspension.
- Cutting Heights 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.50" (1.3 cm) increments, adjustable from operator's seat.
- Blade Tip Speed Approximately 18,500 fpm.
- Blades 3 Blades at 18.75" Length
- Engine Brand Kohler
- Engine Model KT735
- Engine Displacement 735
- Speed Infinitely variable speed selection from 0–7.0 mph (11.3 kmph) forward, 0–5.0 mph (8.0 kmph) reverse.
- Fuel System Carbureted
- Engine Series 7000 Series
- Engine Speed 3,300 rpm
- Drive Hydro-Drive
- Engine Spec 3089
- Fuel Capacity 3-gallon (11.0-L), single fuel tank with single fill locations
- Air Filter Standard Engine Manufacturer's air filter
- Drive Description Two Hydro-Gear ZT-2200 hydro static transmissions with no hoses and integrated cooling fans and integrated reservoir
- Fuel Type Gas Carbureted
- PTO Engagement Electromagnetic 105-ft-lb clutch

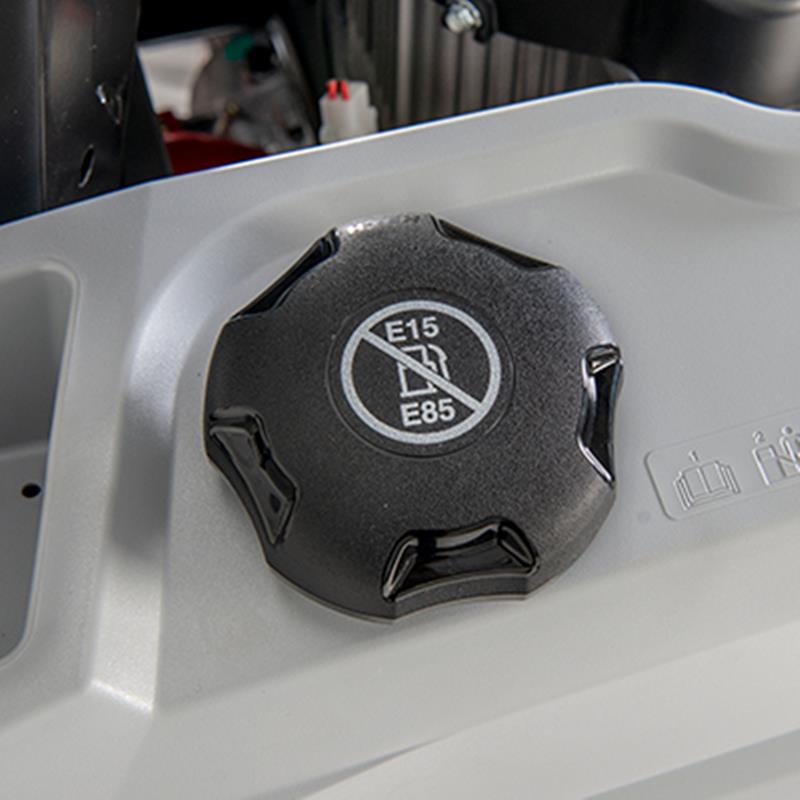

- Fuel Indicator Translucent Visual
- Drive Wheel Release Allows unit movement without engine running.

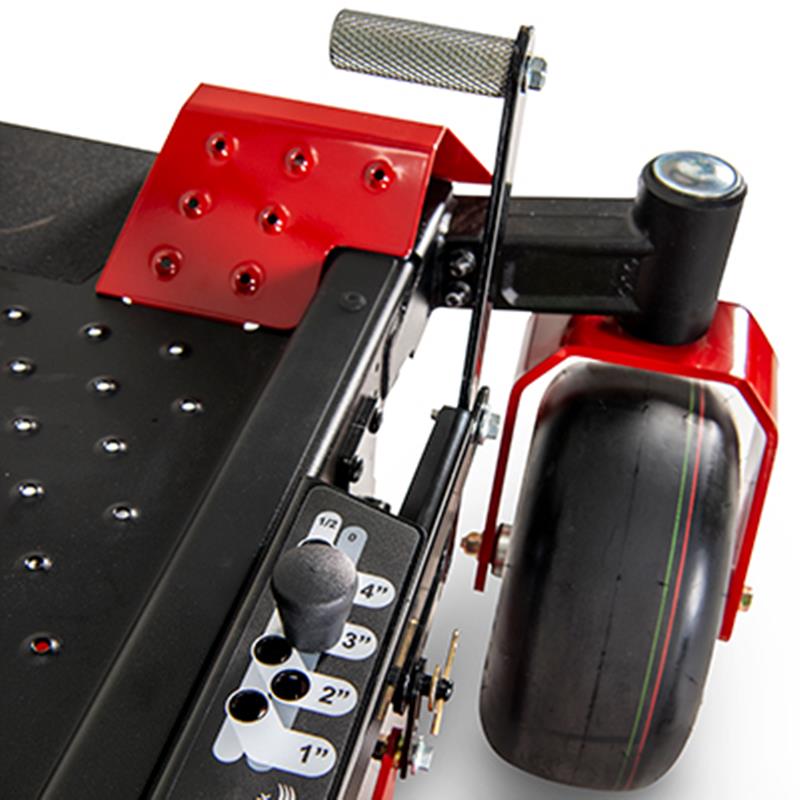

- Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
- Carb Compliant No
- Safety Package Operator Presence Controls (OPC) and drive system interlock.
- ROPS Optional Rigid ROPS with seat belt and latch.
- UPC 193308215648
- Steering Control Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
- Caster Forks .375" thick caster yoke arms.
- Front Caster Tires 13 x 6.5-5 smooth-tread, pneumatic.

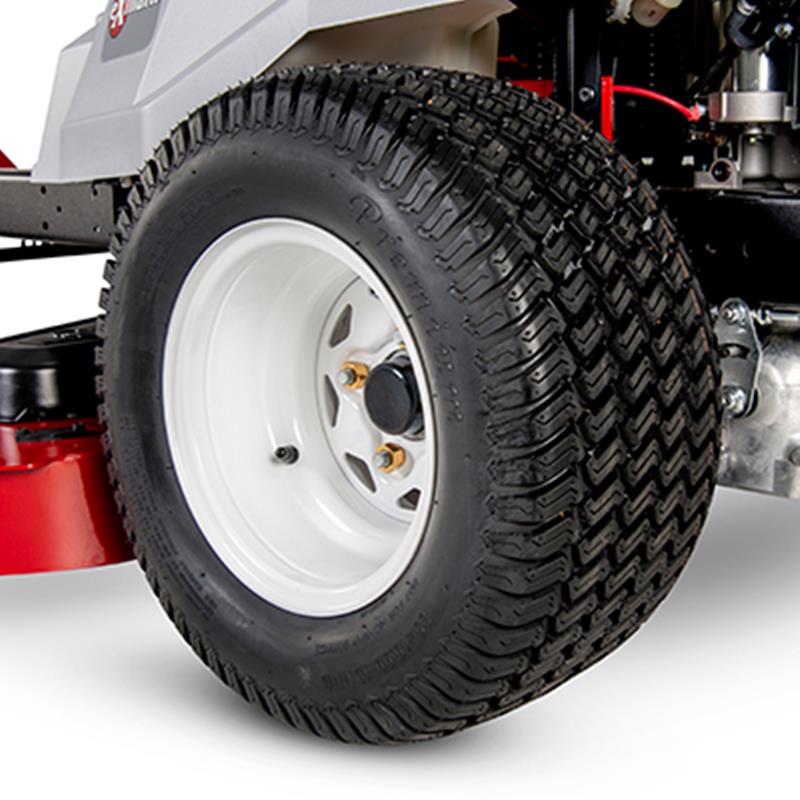

- Drive Tires 20 x 10.0-10 Turf Tech TL
- Parking Brake Automatic-actuated pawl brake.
- Tractor Frame Unibody, riveted 10-guage steel.
- Blade Spindles No maintenance, sealed and non-greasable spindles; 5.50"-diameter cutter housing with 17mm (.67") diameter spindle shaft.
- Electrical 12 volt battery with 15-amp alternator
- Standard Features Engine hour meter, cup holder and hitch
- Seat Commercial grade, high back contoured foam padded w/o arm rests. Hinged mounting and spring suspension. Adjustment is fore and aft for operator position.
- Optional Features seat armrests
Equipment Cover, Small
Protect your zero-turn mower from the elements with this sturdy, waterproof cover. It’s constructed from tough 600-denier polyester, making it abrasion- and tear- resistant. Its elastic opening provides a secure, snug fit. Fits Quest units.
Buy Now
Armrests
Add arm rests to your mower seat.
Buy Now
Jack
Easy to use, 15" stroke Bulldog jack, gives you plenty of room to change blades or perform routine deck cleaning (jack mount receiver not included).
Buy Now
Sunshade
Mounts and detaches quickly behind the operator's position. Made of heavy-duty, water-repellent canvas for maximum durability. Easily removable for transport. Fits Quest.
Buy Now
Micro-Mulch System
The aerodynamically designed deck, baffles and blades create airflow patterns that circulate leaves and grass for repeated cuttings and even dispersal deep into the turf. Mulching baffles also keep the underside clean, which reduces grass buildup and clumping.
Buy Now
Anti-Blowout
In certain conditions deck blowout can occur. Maximize bagging efficiency and air flow into your collection system hopper with this enhancement kit.
Buy Now
Turf Striper
Customize your property with consistent and professional striping using a smooth operating roller design. Installs quickly, using existing mounting points, and easily adjusts for varying cutting height settings. Does not affect your ability to get up and over curbs.
Buy Now
Weight Kit
Enhance your productivity in wet conditions with this weight kit. Each plate weighs 6.6 pounds to give you excellent performance, even with a full load of grass.
Buy Now
Assist Bar
Designed to help you easily step in and out of your mower upon entering and exiting the machine.
Buy Now
LED Light
LED Light Kit
Buy Now
Jack Mount Receiver
Safely access the underside of your zero-turn mower’s deck. Used with Exmark's Bulldog jack, attaches for smooth lift without hassle or strain, thanks to its comfortable, ergonomic design. Built for years of reliability. Fits Quest.
Buy Now
2-Bag Collection System, Non-Powered
Switch between bagging and side discharge with quick-attach capability. Avoid clogging with larger diameter tubes. Compact design minimizes trailer space for easy maneuverability. Sealed hood reduces dust.
Rollover Protection System
KIT- ROPS
Buy NowSlope Sensor
Slope Sensor Kit
Buy Now
