Specs
UPC
193308000770

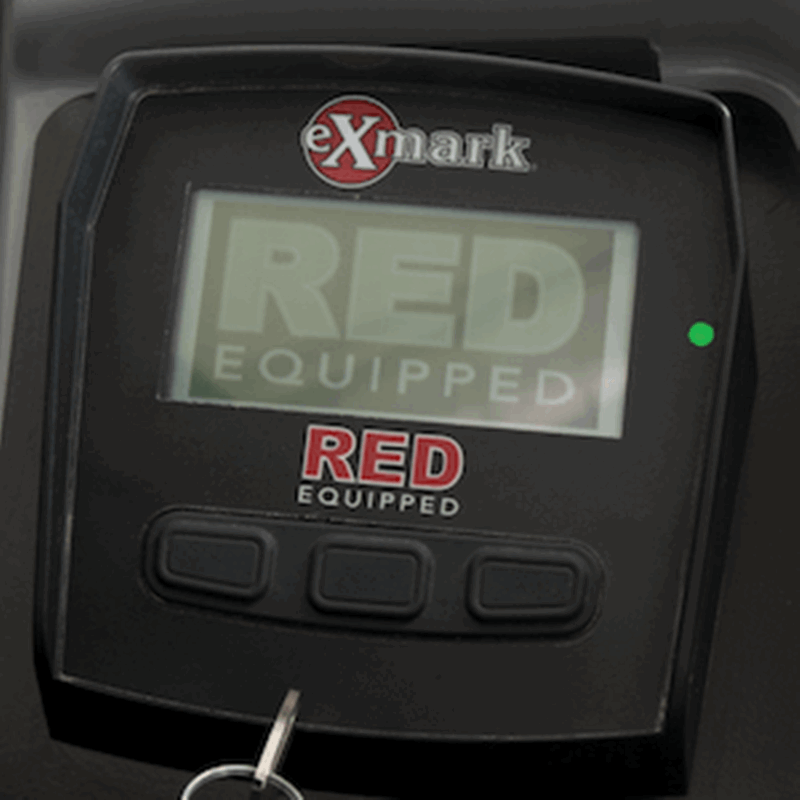

Onboard Intelligence
RED Technology
Starter
Electric

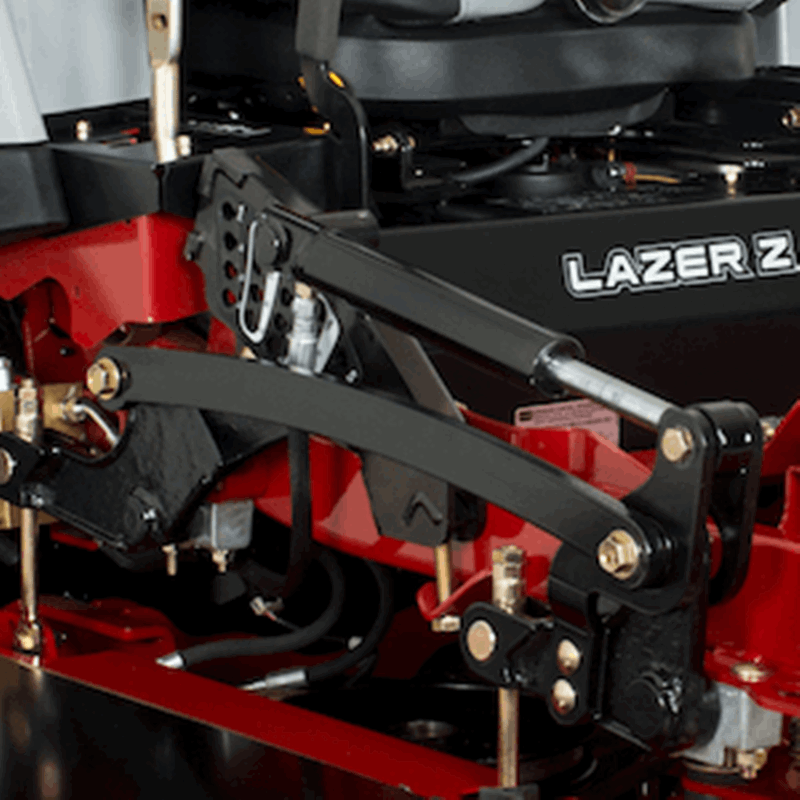

Steering Control
Hydraulically dampened twin levers, adjust fore and aft., also adjustable to 2 height positions. Adjustable dampeners (3 positions) to customize drive responsiveness.
Caster Forks
.50" thick caster yoke arms.
Front Caster Tires
15 x 6.0-6, smooth-tread, semi-pneumatic.

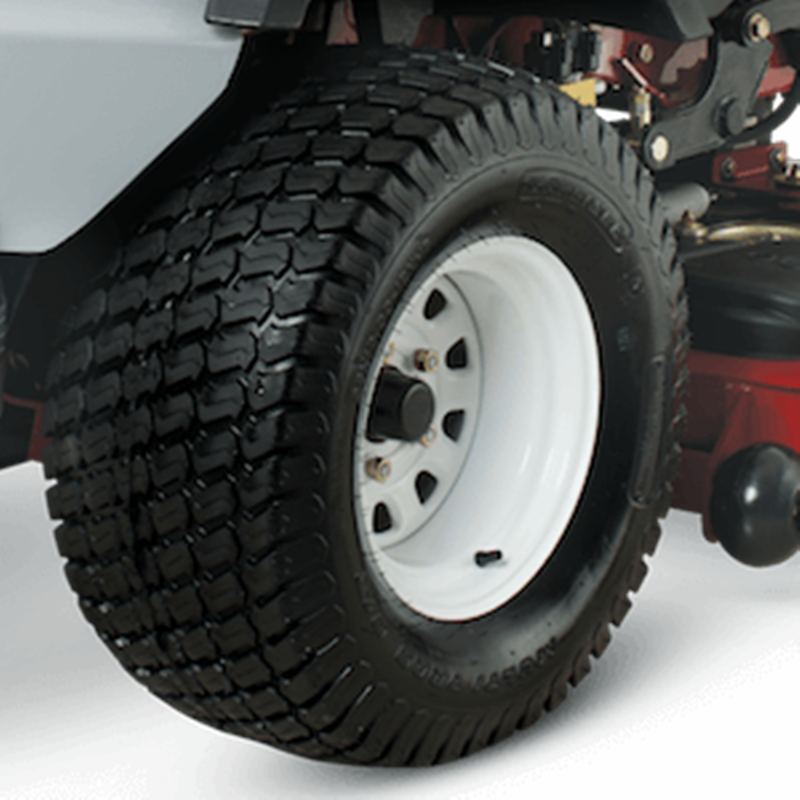

Drive Tires
26x12-12, 6ply
Parking Brake
Lever-actuated internal wet disc brake.
Tractor Frame
Welded, heavy-duty 1.5" x 3" x 3/16" tubular steel.
Blade Spindles
No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft, double row bearings, top and bottom, and splined blade driver.
Electrical
12-volt battery with 55-amp alternator.
Standard Features
12-volt plug-in, engine hour meter and cup holder
Seat
Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.
Transmission Speeds
Infinitely Variable
Engine Brand
YANMAR
Engine Model
3TNV80FT
Engine Displacement
1267
Transmission
Hydrostatic
Engine Series
TNV
Fuel System
Electronically Governed IDI Turbo Diesel
Speed
Infinitely variable speed selection from 0–11.0 mph (18 kmph) forward, 0–6 mph (10 kmph) reverse.
Drive
Hydro-Drive
Engine Spec
ZMTR1
Engine Speed
2,600 RPM
Air Filter
Heavy-duty canister air filtration system with electronic vacuum sensor
Fuel Capacity
12-gallon (45.4-L), side fuel tanks
Drive Description
Kanzaki KPS-18T Transmission, 16-quart oil capacity, spin-on filter. 18 cc shoe type pumps and 17.84 cubic inch Hydro-Gear HGM-18 motors, hydraulic oil cooler.
Fuel Type
Diesel
PTO Engagement
Integrated wet clutch system in transmission, connected to right angle gearbox on deck via drive shaft
Drive Wheel Release
Allows unit movement without engine running.

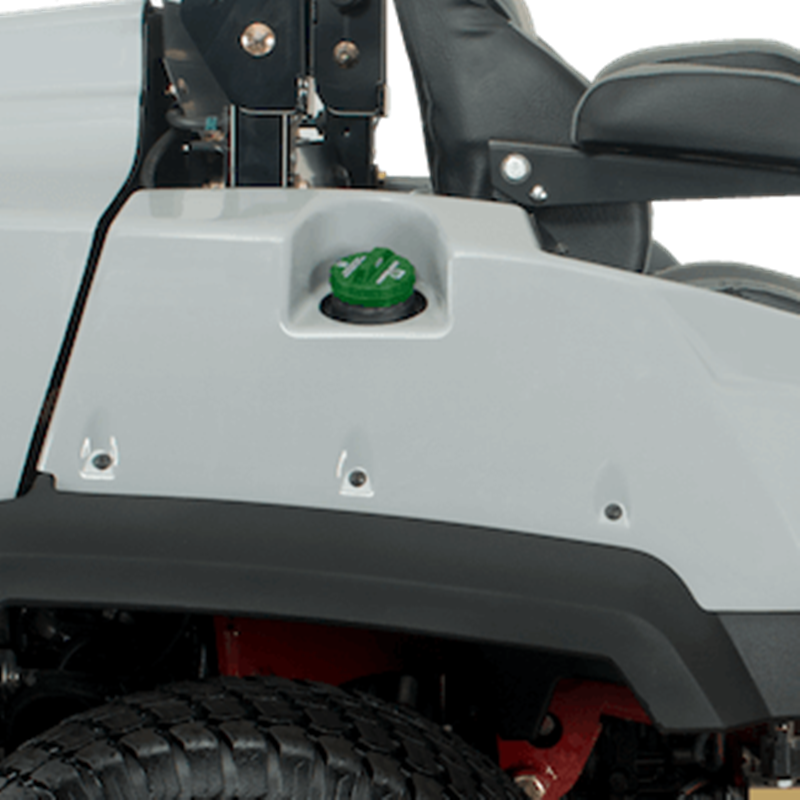

Fuel Indicator
Yes - mechanical float type
Deck Lift
Hydraulic
Carb Compliant
Yes
Safety Package
Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS
2-post foldable ROPS standard with seat belt and latch.
Deck Style
Floating Deck
Deck Style Description
Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
Width / Cutting Deck
60"
Deck Construction
10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge reinforced spindle mounting locations for improved strength and reduced weight.
Cutting Heights
1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator’s seat.
Blade Tip Speed
Approximately 17,600 fpm
Blades
3 Blades at 20.50" Length
Width
72.8 in. (184.9 cm)
Height
71.8 in. (182.4 cm)
Length
96.43 in. (244.9 cm)
Curb Weight
1915
